Our Machines
34ft trailer mounted
boom lift

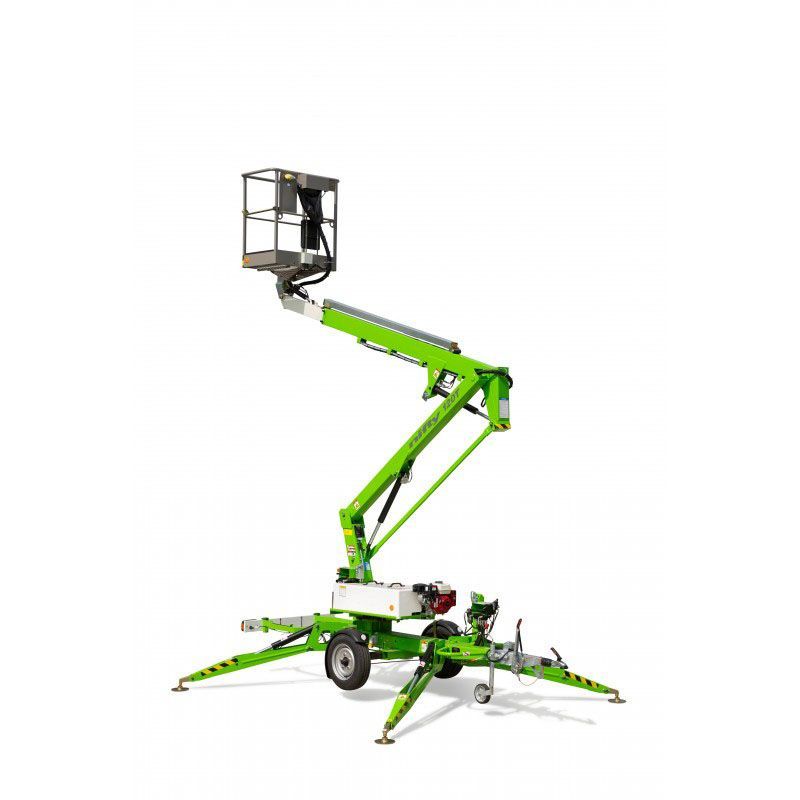

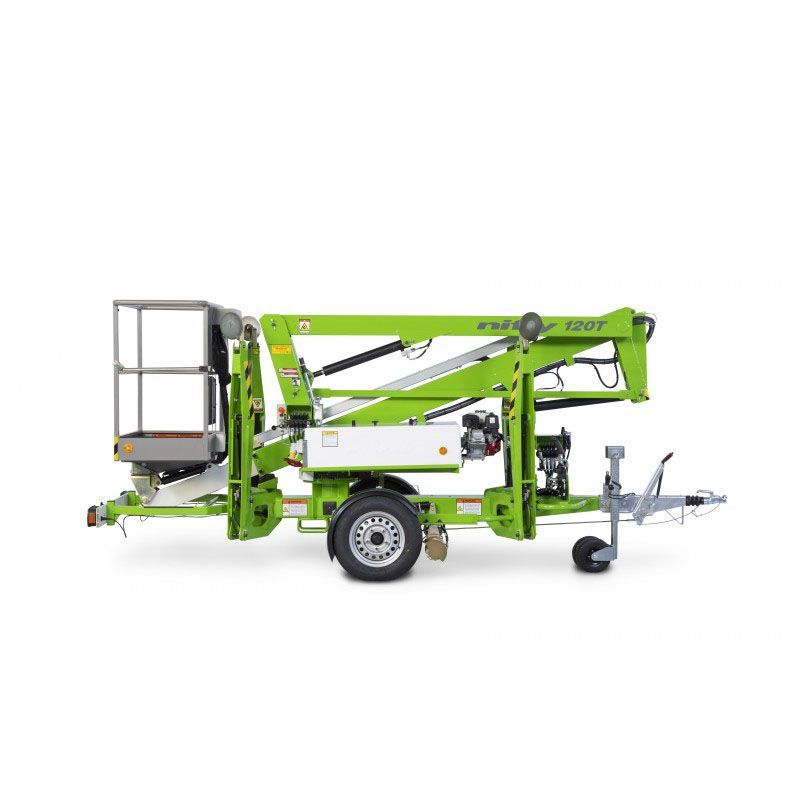

Trailer Mounted Boom Lifts
The 12 meter trailer-mounted boom lift is specifically designed to maximize reach from a compact chassis, featuring a versatile telescopic upper boom that excels in delivering outstanding outreach, especially at lower levels.
It is equipped with fully proportional hydraulic controls for reliable operation and operates on a bi-energy system that combines petrol and electric power.

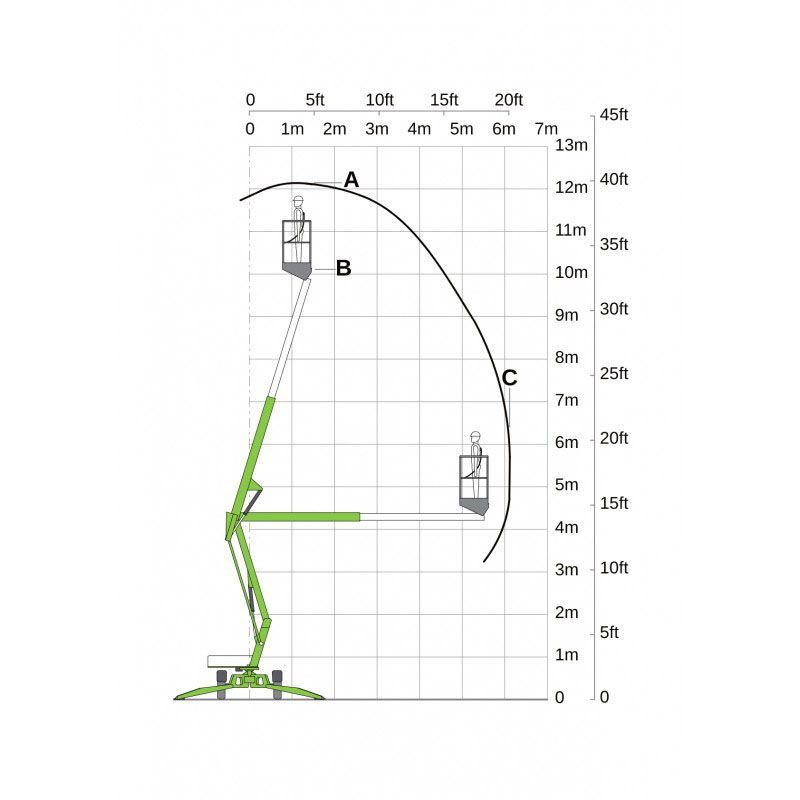

With a maximum working height of 12.2 meters and a horizontal reach of 6.1 meters, it supports a platform capacity of 200 kg and offers an up-and-over clearance of 4.0 meters. The lift has a stowed length of 4.5 meters, a height of 1.9 meters, an outrigger footprint of 3.5 meters, and weighs 1,400 kg, making it highly portable and easy to set up for various job sites.
Specifications
| Max Working Height | 12.2 m |
| Horizontal Reach | 6.1 m |
| Platform Capacity | 200 kg |
| Up and Over Clearance | 4.0 m |
| Length- stowed | 4.5 m |
| Stowed Height | 1.9 m |
| Outrigger footprint | 3.5 m |
| Weight | 1400 kg |
