34 ft 4WD boom lift
Articulated Boom Lifts

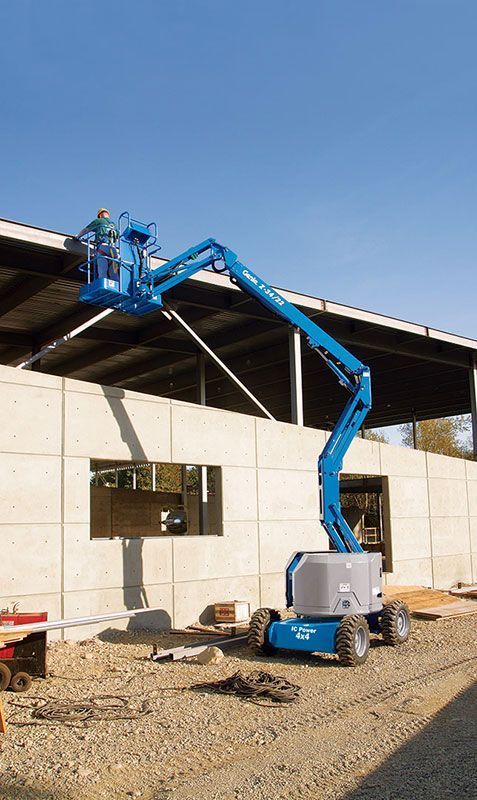

The diesel articulating boom lift is ideal for outdoor construction and industrial applications, offering lifting versatility with up, out, and over positioning capabilities and exceptional outreach.
Featuring 4WD and a 45% grade ability, it can handle challenging terrain, while its zero tail swing and nose swing design enable excellent maneuverability in confined areas, making it perfect for navigating tight spaces with ease, and providing a platform height of 10.62 meters, working height of 12.62 meters, and a capacity of 227 kg.
Overview
- Zero tailswing and nose swing in all positions allow excellent manoeuvrability in confined areas
- Two speed hydraulic motors drive and efficient power transmission for optimum speed and torque on rough terrain
- 4WD and up to 45% gradeability for superior terrainability
- Dual parallelogram and fully proportional controls for precise boom positioning and smooth performance
- 1.22 m (4 ft) articulating jib with a 139° vertical rotation and 180° hydraulic platform rotation to accurately position workers
Specifications
| Category | Boom Lift under 12M |
| Height (m) | 2.06 |
| Width (m) | 1.85 |
| Length (m) | 5.66 |
| Weight (kg) | 4854 |
| Energy Source | Diesel Articulating |
| Horizontal Reach (m) | 6.78 |
| Platform Height | 10.62 |
| Working Height (m) | 12.62 |
| Capacity (kg) |
Downloads
To view earlier versions of this specification sheet, please click here and look up for your machine Operator Manual by serial number.
The relevant specification data will be on the last page.
