12 meter 4WD scissor lift
Scissor lift

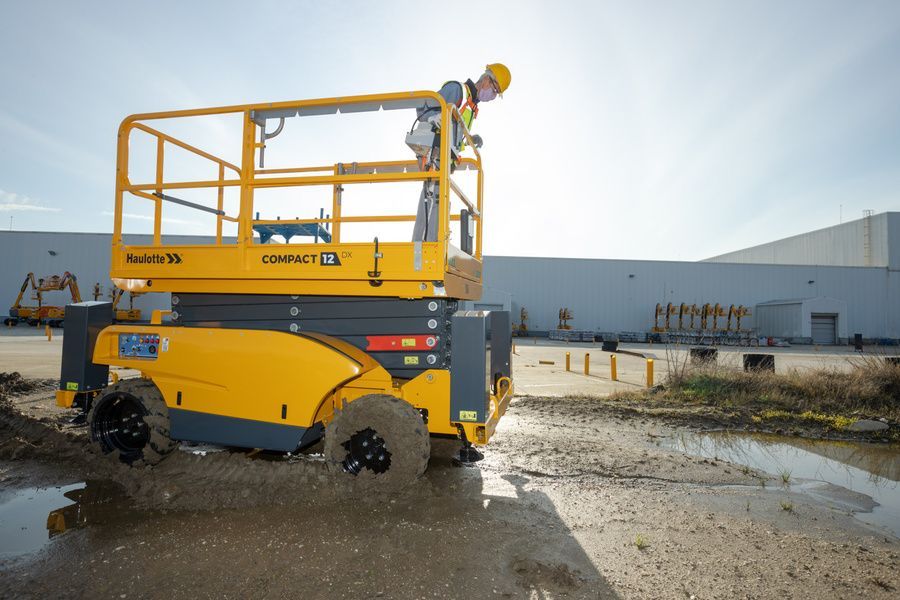

The Haulotte Compact 12 DX is a rough terrain scissor lift designed for outdoor use, featuring a working height of 12.06m, a load capacity of 450kg, and 4-wheel drive with automatic differential lock for navigating rugged terrain.
It has a robust construction, is easy to maintain, and offers high productivity, making it suitable for construction and maintenance tasks, with additional features including a platform extension and foam-filled tyres for reliability and stability.
Specifications
| Working height | 12.06 m |
| Platform height | 10.06 m |
| Lift capacity | 450 kg (3 pers.) |
| Lift capacity on the extension | 150 kg |
| Platform length | 2.45 m |
| Extended platform length | 3.7 m |
| Platform extension length | 1.2 m |
| Platform width | 1.45 m |
| Platform size - extended | 3.7 x 1.45 m |
| Storage height | 1.71 m |
| Height - stowed | 2.56 m |
| Width | 1.78 m |
| Length | 3.18 m |
| Wheelbase | 1.84 m |
| Ground clearance | 28 cm |
| Maximum drive height | 8.28 m |
| Gradeability | 40 % |
| Tyres | foam filled |
| Weight | 3965 kg |
