Our Machines

20ft vertical mast lift

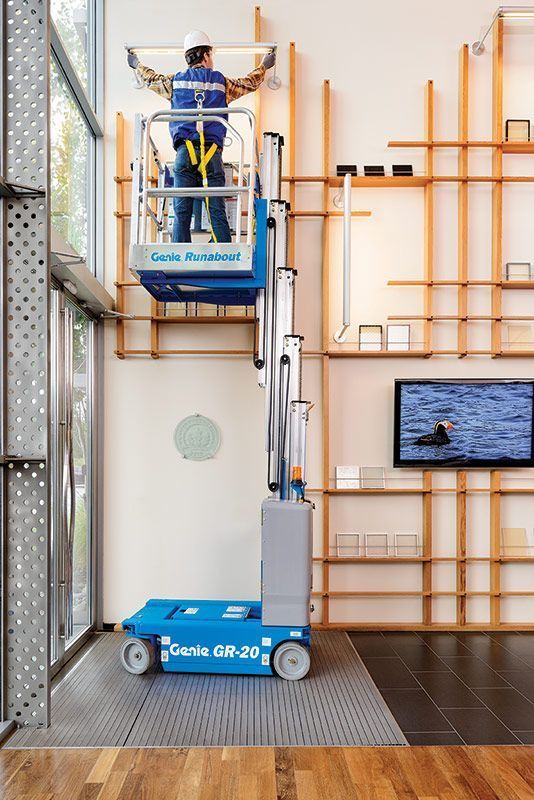

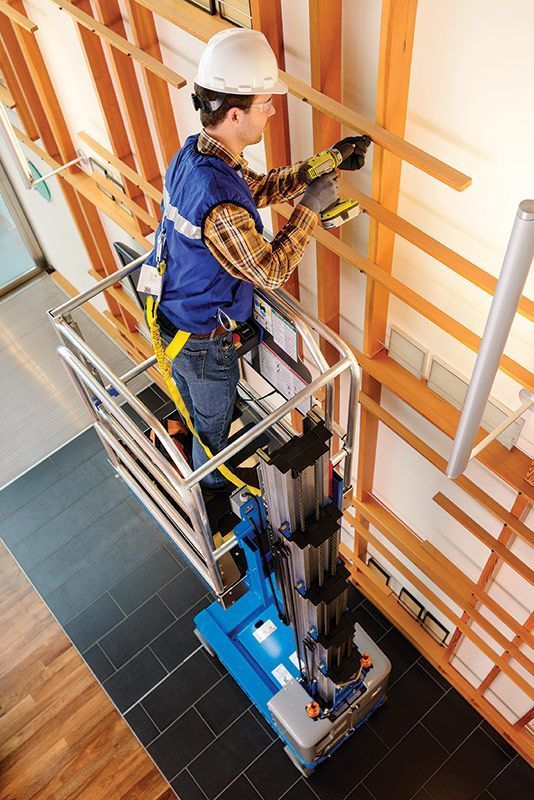

Vertical Mast Lifts

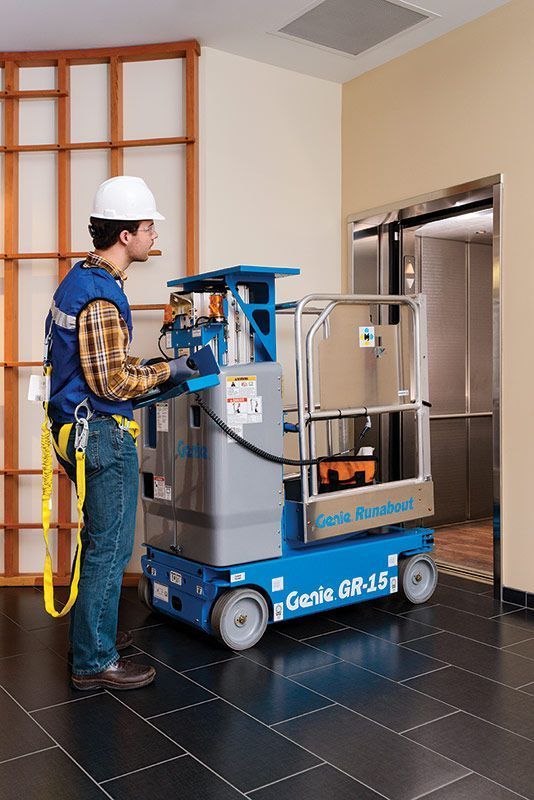

The Vertical Mast Lift is a compact and lightweight machine that enhances job productivity by fitting through 85 cm doorways and most passenger elevators, allowing operators to drive through these openings while aboard.

Its zero inside turning radius and full elevation drive make it particularly suitable for tasks in warehousing, transportation, inventory management, and general maintenance.

With a maximum working height of 8.02 meters and a platform height of 6.02 meters, the lift has retracted platform dimensions of 890 mm in length and 750 mm in width, extending to 1400 mm when in use. It has a stowed height of 1.98 meters, a length of 1.35 meters, and a width of 800 mm, supporting a capacity of 159 kg and weighing 1,140 kg, ensuring easy maneuverability in tight spaces.

Overview:

Precise up and over access — with outreach capability to get virtually any job done
Driveable when fully elevated
Zero inside turning radius, 140° rotating jib and 350° non-continuous hydraulic turntable for precise positioning

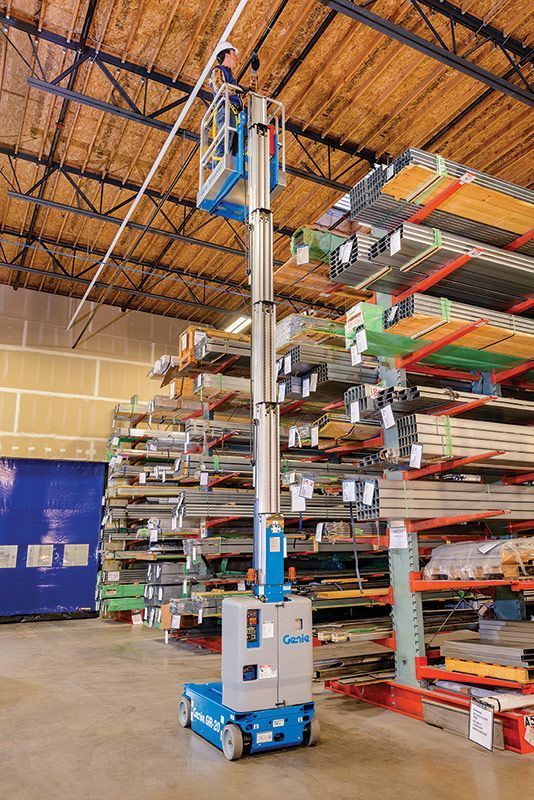

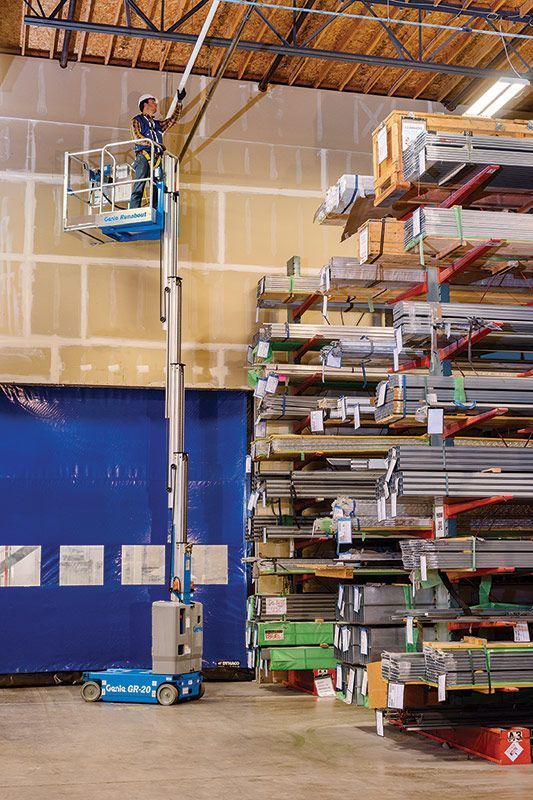

Ideal for warehousing, stock-picking, transporting, inventory management and general maintenance

Specifications


Working Height	8.02 m
Platform height max.	6.02 m
Platform dimensions retracted	890L×750W mm
Platform dimensions extended	1400L×750W mm
Height - stowed	1.98 m
Height - stowed	1.98 m
Length- stowed	1.35 m
Width	800 mm
Capacity	159 kg
Weight	1,140 kg
