Our Machines

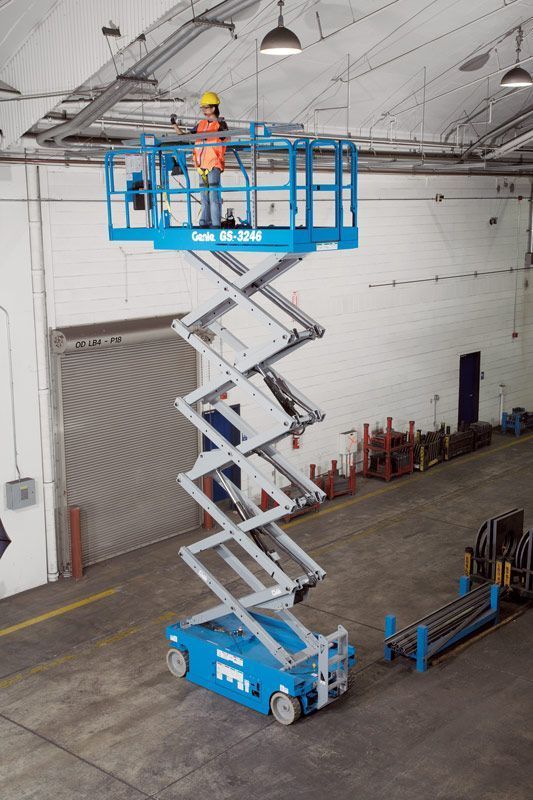

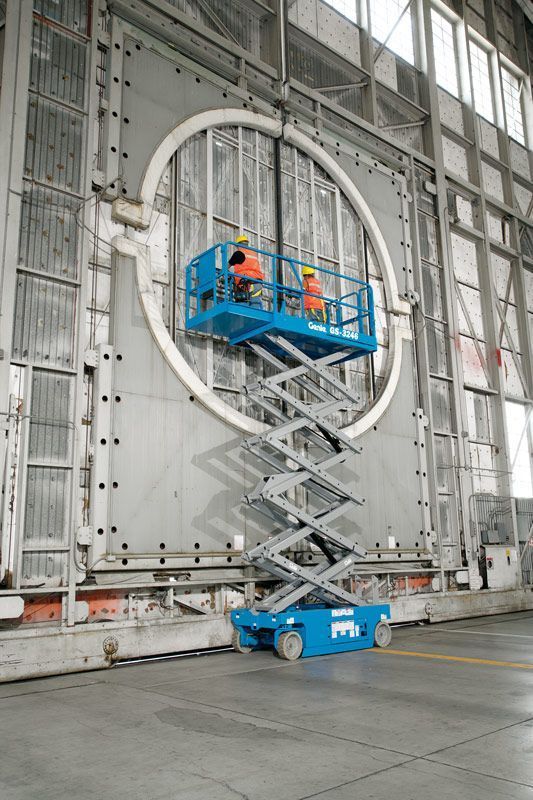

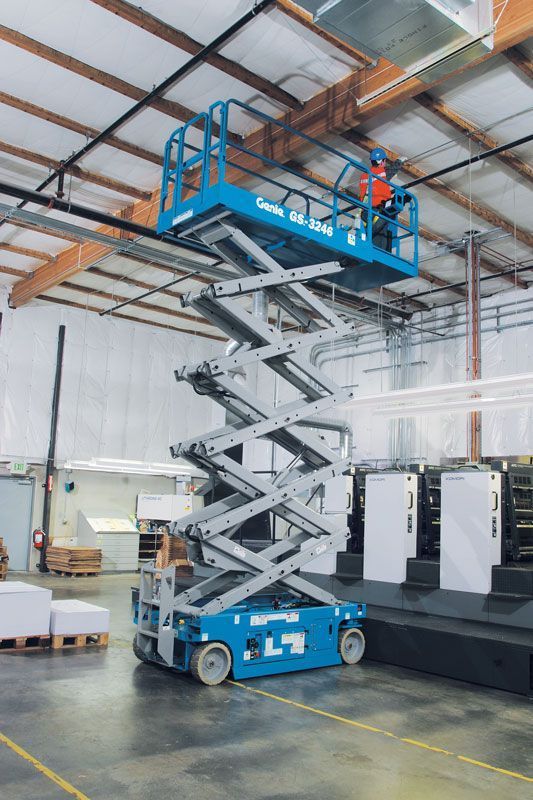

26ft electric scissor lift
Slab Scissor Lifts
This electric slab scissor lift is designed for both indoor and outdoor applications on firm, level surfaces, making it perfect for restricted spaces.
With dimensions of 2.26 meters in height, 1.17 meters in width, and 2.41 meters in length, it has a weight of 2447 kg. The lift features a platform height of 7.92 meters and a working height of 9.92 meters, providing a robust capacity of 454 kg, ensuring a stable work platform for various installation, maintenance, and construction tasks.
Overview:
- Powerful AC electric drive motors for unmatched driving performance and industry-leading runtime per battery charge
- Quiet, zero-emission electric operation
- Front-wheel drive and zero inside turning radius for easy positioning
- 25% gradeability with 14° breakover angle to easily get up slopes and loading ramps
- Large platform workspace with 0.91 m (36 in) roll-out platform extension
- Swing out components trays for easy access
- User-friendly Smart Link™ dual-zone controls for indoor and outdoor use
Specifications
| Category | Scissor Lift |
| Height (m) | 2.26 |
| Width (m) | 1.17 |
| Length (m) | 2.41 |
| Weight (kg) | 2447 |
| Energy Source | Electric |
| Platform Height | 7.92 |
| Working Height(m) | 9.92 |
| Capacity (kg) | 454 |
Downloads
To view earlier versions of this specification sheet, please click here and look up for your machine Operator Manual by serial number.
The relevant specification data will be on the last page.
